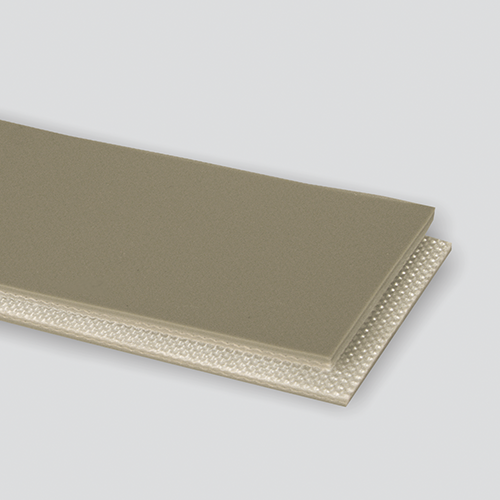

Part# 20104160
Specialty high friction tops used in difficult inclines, declines, or as brake or spacer belts. Can handle paperboard containers and some totes on inclines up to 45˚. Primarily effective in clean, dry environments. This belt is made with premium soft durometer PVC covers.
SPECIFICATIONS
-
UPC: 725559945090
-
Spec#: 4160
-
Ply: 2
-
Working Tension: 65
-
Color: Gray
-
Compound: PVC
-
Carcass: Monofilament
-
Top Surface: Sticky Top
-
Bottom Surface: Bare
-
Thickness / Overall Gauge: 0.138"
-
Weight (PIW): 0.067
-
Elongation @ 100%: 1-2%
-
Minimum Pulley: 2"
-
Temperature Range: 0°F to 160°F
-
Oil Resistant: No
-
Clipper®: UX1
-
Alligator®: 7
-
Staple: RS125
-
Solid Plate: Not Recommended
-
Flexco® Bolt On: Not Recommended
-
Flexco® Rivet: Not Recommended
-
Plastic Spiral: ASL90
-
Plastic Rivet: APF150 W Recess
-
Endless Splice: Finger, Skive
