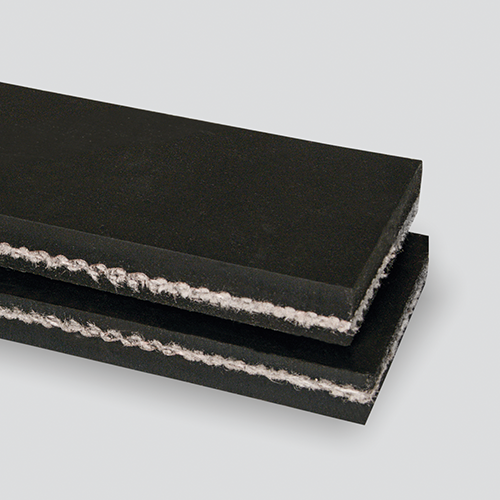

1-Ply 440# 1/4 x 1/8 Grade 1

1-Ply 440# 1/4 x 1/8 Grade 1

Part# 20029850

Single-ply straight warp belt carcass offers exceptional life, low stretch, and high volume carrying capacity. Thick, Grade 1 covers withstand high impact, tearing, and gouging.



SPECIFICATIONS

  • EAN / UPC: 725559103452
  • Spec#: 246A
  • Ply: 1
  • Working Tension: 440
  • Color: Black
  • Compound: SBR Blend
  • Carcass: Straight Warp Polyester/Nylon
  • Top Surface: Smooth
  • Bottom Surface: Smooth
  • Thickness / Overall Gauge: 0.5625"
  • Weight (PIW): 0.295
  • Elongation @ 100%: 1-2%
  • Minimum Pulley: 20"
  • Temperature Range: -25°F to 225°F
  • Oil Resistant: No
  • Durometer: 60 +/- 5
  • Clipper®: Not Recommended
  • Alligator®: Not Recommended
  • Staple: Not Recommended
  • Solid Plate: 190
  • Flexco® Bolt On: 550
  • Flexco® Rivet: R6
  • Endless Splice: Finger
