Part# 20029605

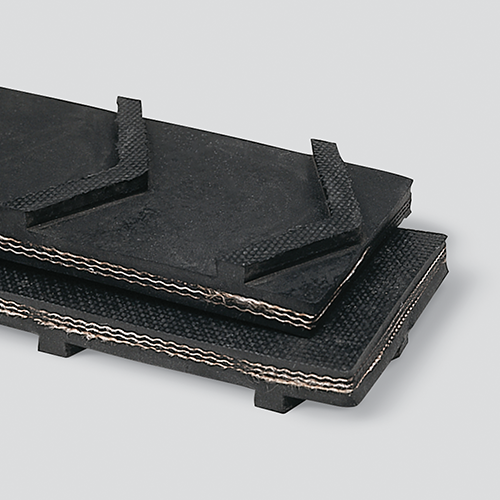

1/4" high x 3/8" wide x 6" overall width molded chevron cleats running the full width of the belt. Popular for incline applications for aggregate, road construction and recycling.
SPECIFICATIONS
-
UPC: 725559026447
-
Spec#: 178
-
Ply: 3
-
Working Tension: 330
-
Color: Black
-
Compound: SBR
-
Carcass: Polyester/Nylon
-
Top Surface: Molded Chevron
-
Bottom Surface: Smooth
-
Profile: 1/4" x 3/8"
-
Thickness / Overall Gauge: 0.375"
-
Weight (PIW): 0.260
-
Elongation @ 100%: 1-2%
-
Minimum Pulley: 18"
-
Temperature Range: -25°F to 225°F
-
Oil Resistant: No
-
Durometer: 60 +/- 5
-
Clipper®: Not Recommended
-
Alligator®: Not Recommended
-
Staple: Not Recommended
-
Solid Plate: 190
-
Flexco® Bolt On: 550
-
Flexco® Rivet: R5-1/2
-
Endless Splice: Bias Step
