Part# 11037031
This hose assembly is specifically designed for transferring liquefied propane gas, but is rated 10 degrees lower than most LP gas hoses. It has an abrasion resistant cover, and is coupled with non-sparking brass fittings on both ends. This hose must be used in well ventilated environments.
SPECIFICATIONS
-
UPC: 725559402043
-
Inside Diameter (in): 1
-
Inside Diameter (mm): 25.4
-
Outside Diameter (in): 1.5
-
Outside Diameter (mm): 38.1
-
Maximum PSI: 350
-
Minimum Bend Radius (in): 7
-

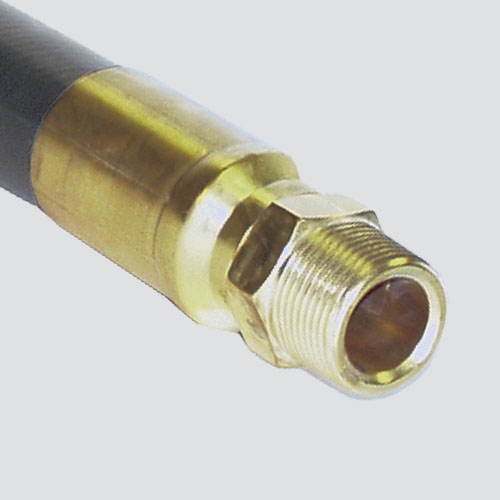

Fittings: Male Pipe Thread x Male Pipe Thread Crimped - Non-Sparking Brass Fittings
-
Temperature Range: -50°F to 180°F
-
Cover Material: CM/RMA Class B
-
Cover Color: Black
-
Tube Material: NBR/RMA Class A
-
Tube Color: Black
-
Reinforcement: Multi-ply Textile Spirals
-
Weight (lbs): 61 / Each
-
Style: Coiled
